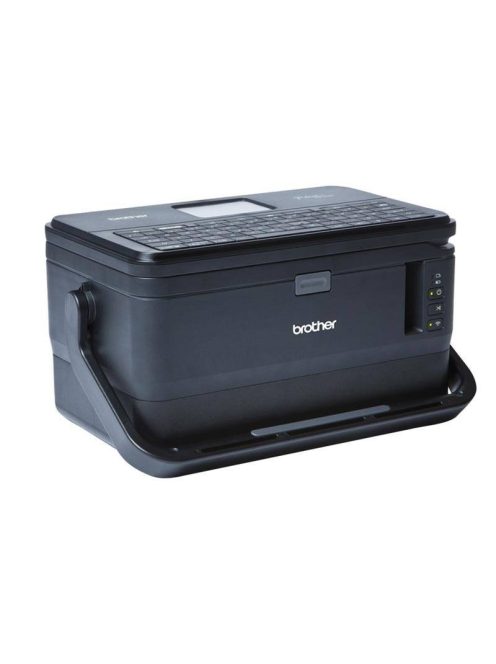

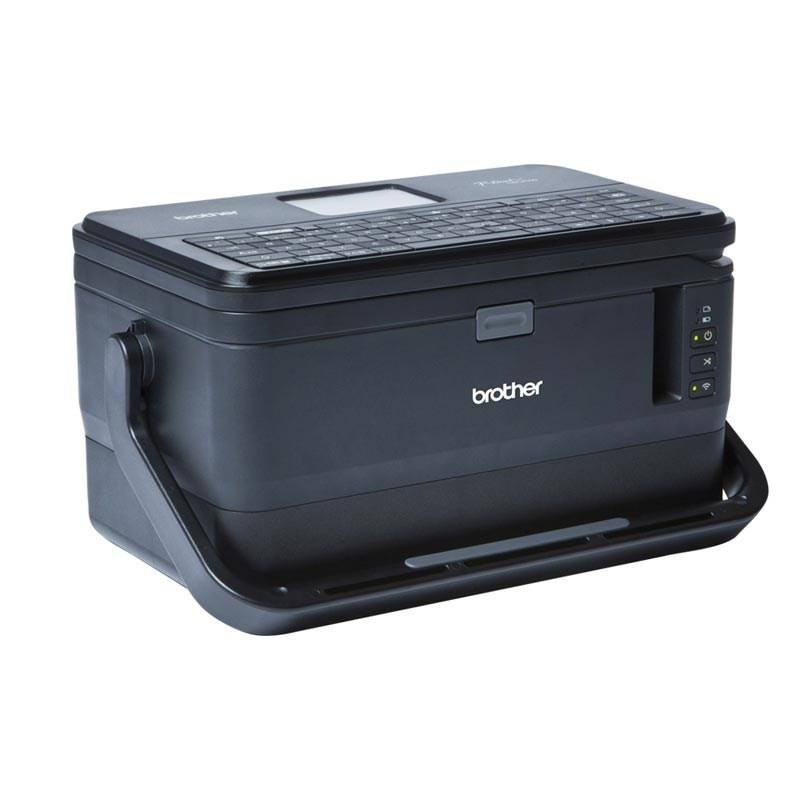

A revolutionary labeling device with USB and Wi-Fi connectivity, including a carrying case and storage compartment! As a novelty, the 36 mm wide band can also print compatible text, barcode, and logos that are suitable for both outdoor and indoor use. PC, Mac, smartphone and tablet connectivity is also available, as well as free label design software and applications for the user.
Featured properties
u00a0
![]()
Print on 36mm wide tape
u00a0
![]()
High speed and high resolution printing
u00a0
![]()
Professional keyboard and integrated graphic backlit LCD display
u00a0
![]()
A variety of built-in label templates
u00a0
![]()
Wi-Fi connection for printing from tablet and smartphone
u00a0
![]()
Advanced cutting unit, easy-to-remove label back cover function
General - P-touch
Maximum tape width (mm) 36
u00a0Cutter Type Full and Half
u00a0Display Backlit LCD
u00a0Display size 320 x 240 pixels
u00a0Uploading from a computer Yes
u00a0Technology Heat Transfer
u00a0Template Upload from Computer Yes
u00a0Device Type Desktop, Connects to a Computer
General Supplies
Width 3.5, 6, 9, 12, 18, 24, 36mm
u00a0Type TZe Tape, HSe Tube, FLe Label
Connectivity
USB interface USB 2.0, 3.0 Full Speed (Windows), USB 2.0 Full Speed (Mac)
u00a0Wi-Fi Direct IEEE802.11n
u00a0Wireless Network Interface IEEE802.11b (Ad-Hoc Mode), IEEE802.11b / g / n (Infrastructure Mode)
Size & Weight
Dimensions 337mm (W) x 188mm (D) x 173mm (H)
u00a0Weight 3.4 kg
Package Contents
Network Adapter Yes
u00a0Tape Cartridges 36mm black on white TZe Tape (8m)
u00a0USB Cable Yes
u00a0User Guide Yes
u00a0Warranty Card Yes
Operating System and Software
Supported Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008, Windows Server 2008, Windows Server 2003. / Mac OS X 10.11.x / 10.10 .x / 10.9.x / 10.8.x / 10.7.5
Label Design
Fonts 14
u00a0Text Alignment Center, Line Out, Left, Right
u00a0Text Size 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 28, 32, 36, 40, 48, 56, 64, 72, 80, 88 , 90, Auto
u00a0Text Style Normal, Bold, Outline, Shadow, Solid, Italic, Italic & Bold, Italic & Outline, Italic & Shadow, Italic & Solid
u00a0Underline Yes
u00a0Vertical Printing Yes
Print
Mirror Print Yes
Predefined label layouts
Cable Marker Function Yes
Label Design Software
Date & Time Stamp Date & Time
u00a0Download content from the Brother Cloud Yes
u00a0Fonts All installed TrueType fonts
u00a0Frames 154
u00a0Supported Image Formats DIB, GIF, ICO, JPG, PNG, TIFF, WMF
u00a0Tag orientation Horizontal, Vertical
u00a0Language English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovak, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
u00a0Ribbon Color Recognition Yes
u00a0Tape Size Recognition Yes
u00a0Text Alignment Center, Fixed, Left, Right
u00a0Collection Styles Bold, Inverse, Italic, Normal, Shadow, Light Shadow, Rounding
u00a0Vertical Printing Yes
Warranty
u00a012 + 24 months
u00a0Warranty Place
u00a0Full service
